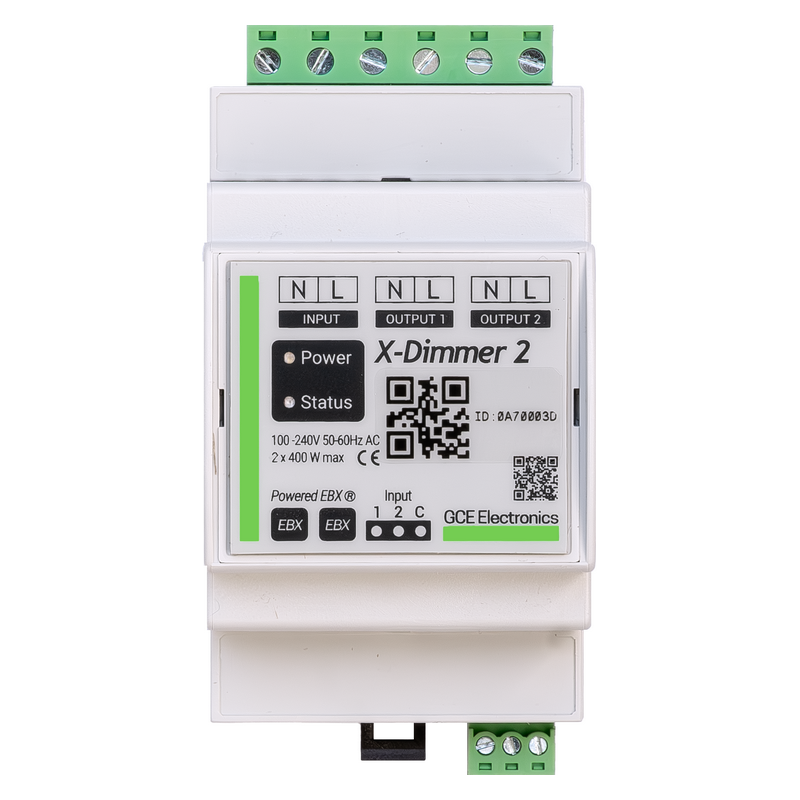

Variateur d'éclairage X-DIMMER 2

Extension pour IPX800 V4 & V5

Un contrôle précis et fiable de vos éclairages, en toute simplicité.

Description

• The X-Dimmer 2 offers precise light intensity control for your lighting, with two independent channels, compatible with all types of dimmable lamps. Its soft start and soft stop functions, together with its resettable fuses, guarantee safe, long-lasting operation. In the event of a fault, such as a wiring error or accidental short-circuit, the x-dimmer 2 automatically switches to safety mode. Simply switch it off and on again to resume normal operation. Its compact size of 3 din modules makes it easy to fit into an IPX800 v4 or V5 installation.

Main features

• Light intensity control for IPX800 V4 and V5.
• 2 independent channels to manage 2 lighting circuits
• 2 on/off inputs for manual control by pushbutton
• Designed for dimmable LED lighting
• Compatible avec tous types de lampes dimmables, sans charge additionnelle
• Compatible with all dimmable lamps, without additional load (max. 20 LED lamps)
• Supports up to 4 transformers in parallel. ( Dimmable electronic transformer compatible with trailing edge dimmers)
• Soft start & soft stop
• Resettable electronic fuses
• Can be operated in manual mode without IPX800 with the addition of an X-PSU20 (not supplied).

Technical data

• • Power supply: 100-240V, 50-60 Hz.
  • Trailing edge phase dimmer
  • 2 dimmable channels, 400W max. per channel.
  • Resettable short-circuit protection
  • Resettable overload protection

• Resettable thermal protection
• Din rail enclosure EN60715
• Size: 53.5 x 90 x 62
• ABS flame retardant UL94 V0
• CE / RoHS
