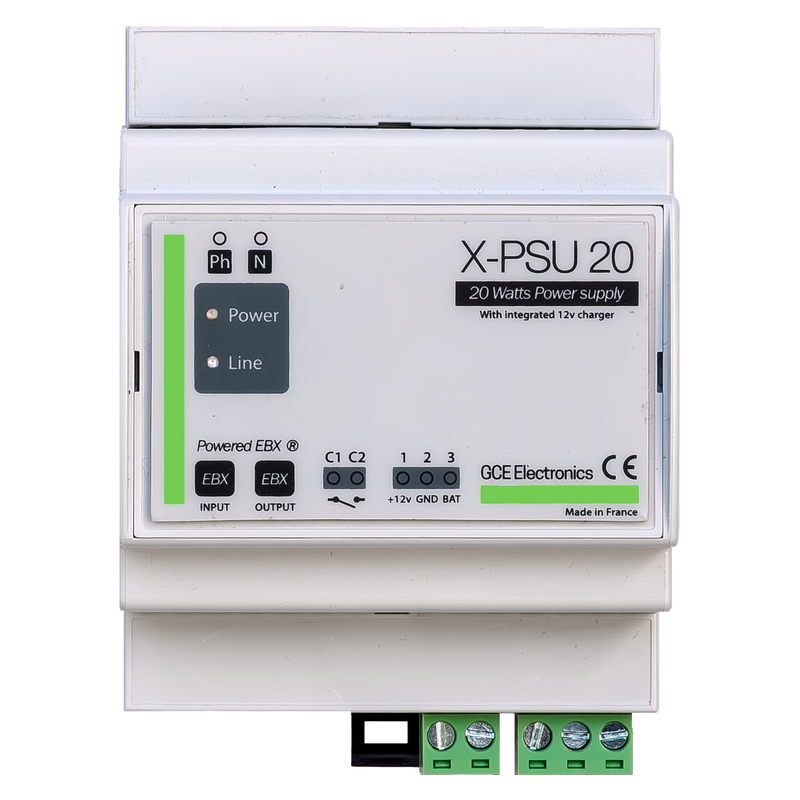

Power supply X-PSU20

The use of the X-PSU 20 power supply provides additional functions compared to a conventional power supply, such as the intelligent switching of relays, or the possibility of adding a 12V battery (not supplied) to the system, to have an operation of emergency, in the event of an electrical power cut. Intelligent relay switching helps limit inrush currents during circuit switching and thus preserves the life of the relay contacts. This function is particularly suitable for switching LED lamps, which generates a very high inrush current when switching on. The "Powered EBX" RJ45 connections allow simple, reliable and error-free cabling of the power supply and the EBX bus with a single RJ45 cable.

Technicals specifications:

• Input: 100-240VAC 0.6A.
• Output: 14.5V Courant continu, 1.4A.
• Overload protection
• Overcurrent protection
• IP20
• DIN IEC6071
• 2 years warranty
• 71 x 90 x 68 mm
