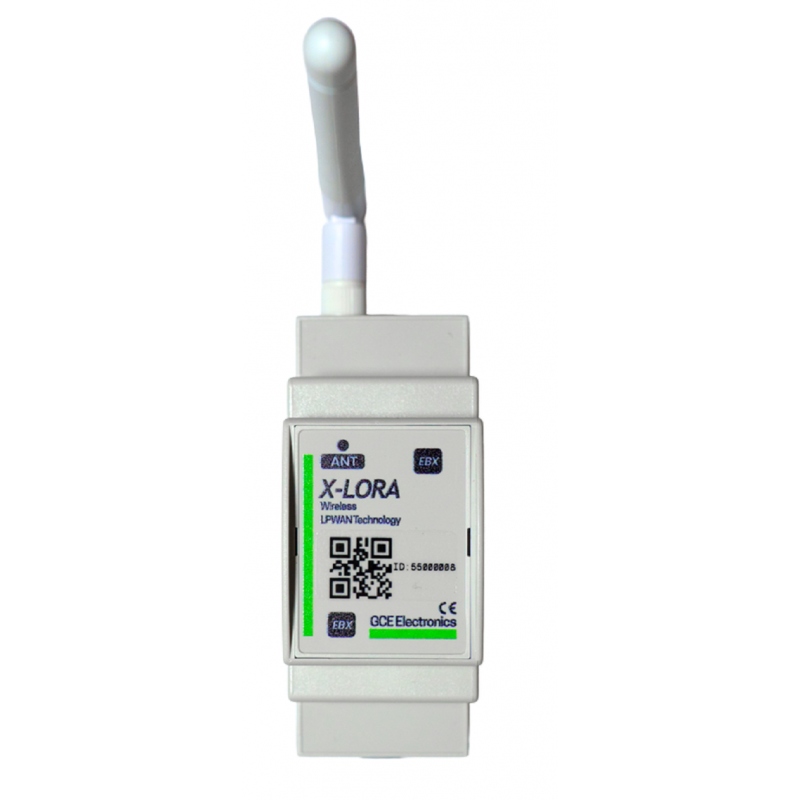

X-LORA - LoRaWAN extension for IPX800 V5

Easily integrate the IPX800 V5 into a LoRaWAN network

The X-LORA connects your IPX800 V5 to an existing LoRaWAN network to transmit and receive long-range data for your distributed sensors and automation systems. Please note: the X-LORA is not a LoRaWAN gateway; an external LoRaWAN gateway and server are required.

Up to 4 sub-groups of objects can be transmitted and received(16 IO + 4 ANA16 + 4 ANA32 per group), with a JSON format encoded in hexadecimal for simple exchanges with your server (e.g. The Things Stack).

The module manages LoRaWAN classes A and C (class C by default) and ensures automatic reconnection after configuration.

Key features

• Plug-and-play integration with IPX800 V5 (add/scan in V5 interface)
• Up to 4 Send groups and 4 Receive groups (16 IO, 4 ANA16, 4 ANA32 per group)
• JSON exchanges , compatible with The Things Network (TTN)
• Class A & C support, configurable application port
• Free updates
• Power LED & Link LED indicators (status : initialisation, connection, update)

In a nutshell:

• LoRaWAN-compatible extension for IPX800 V5 (requires LoRaWAN gateway/server)
• Transmission: 4× (16 IO + 4 ANA16 + 4 ANA32) - Reception: 4× (16 IO + 4 ANA16 + 4 ANA32)
• Data format:
• JSON → Hex (uplink/downlink)
• LoRaWAN classes A & C (C by default)
• Power supply: 12 V DC via EBX Powered (IPX bus, 2 RJ45 IN/OUT ports, 1 cable supplied)
• Connections: antenna (SMA), Power LED (green), Link LED (orange)
• Mounting: DIN rail, 2-module footprint
• Compliance: RoHS - 2-year warranty

Documentation, drivers and software available from our Download Center
