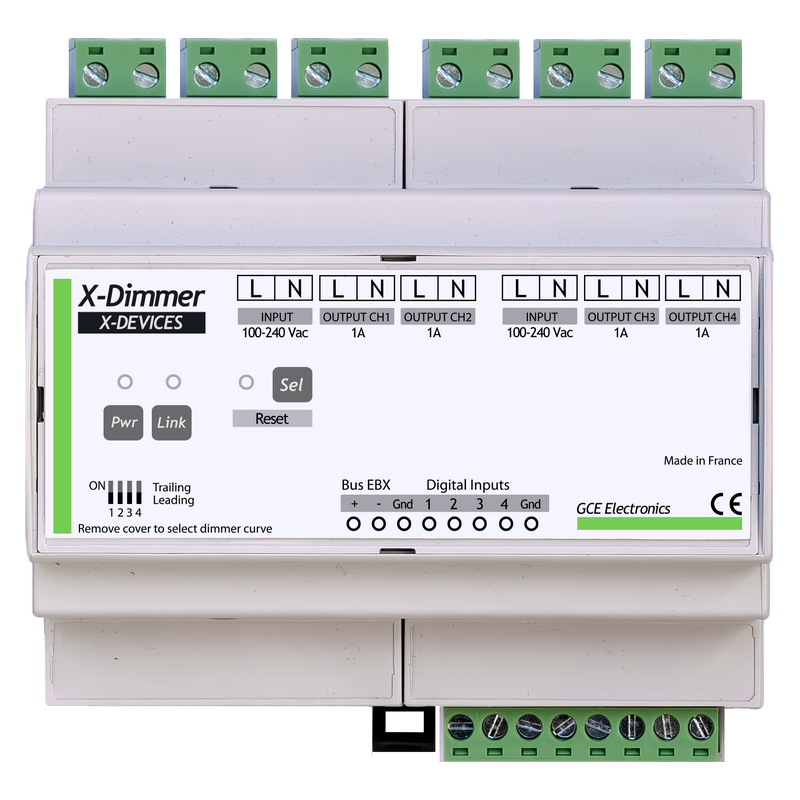

X-Dimmer

X-DIMMER dimmer - 4 channels - IPX800 V4 & V5 extension

Control the intensity of your lights from a push-button or via the IPX800

The X-DIMMER is an IPX800 V4 and V5 compatible dimmer extension. It lets you control the light intensity of your lighting simply by pressing a long or short push-button, or in centralised mode via your IPX800.

Each channel can be configured in Trailing or Leading Edge mode depending on the type of dimmable lamp used, including LED (without additional load). The X-DIMMER also operates completely independently, without requiring an IPX800.

Installation is quick: just connect the channels, power supply and EBX bus. Up to 6 extensions can be used to manage up to 24 circuits. Allow 6 DIN modules for panel integration.

Key features

• IPX800 V4 and V5 compatible extension
• 4 independent dimmable channels (130 W max.
• Compatible with dimmable lamps (LEDs included)
• Local control: short press ON/OFF, long press dimming
• Trailing/Leading edge configuration per channel
• 2-wire EBX bus - up to 200 m distance
• Quick installation - automatically recognised by the IPX800
• Stand-alone product - works with or without IPX800
• 2-year warranty - Made in France

In brief:

• Number of channels: 4 (max. 130 W / channel)
• Recommended LED power: max.
• 40 W / channel
• Functions: ON/OFF, dimming
• Customisable dimming range
• Cumulative extension: up to 24 channels (6 modules)
• Power supply: 100 - 240 V AC / 50 - 60 Hz
• No-load power consumption: 2 W
• Communication bus: EBX 2-wire - 200 m
• Slot: 6 DIN modules

Documentation, drivers and software available from our Download Center
